Product Introduction

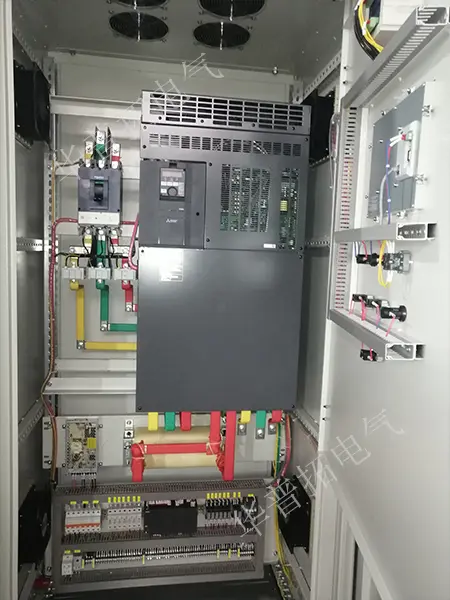

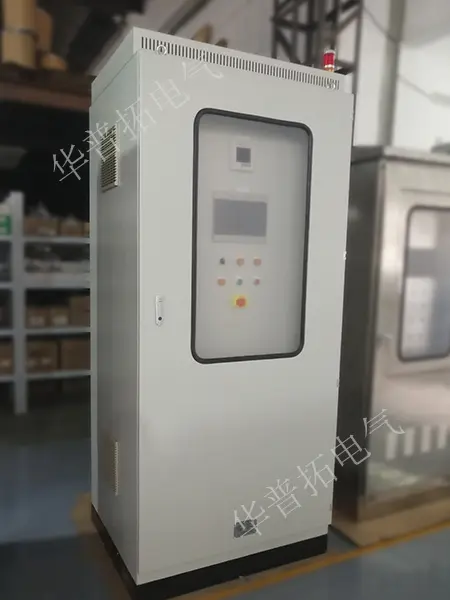

This fan frequency conversion cabinet control system is designed and produced by Kunshan Huaputuo Electric. This project is used for dust removal control in auto parts companies. The frequency conversion cabinet controls the start and stop of the fan of the system and the setting and collection of parameters. A 220KW frequency converter and Siemens PLC module are installed in the frequency conversion cabinet, and a Kunlun touch screen is installed on the cabinet door.
02 As shown in the figure, after being programmed by Huaputuo engineers, the touch screen outputs the screen . Entering the screen has a sense of technology and is more professional. After entering the menu, there is a main screen process diagram of the entire dust removal control system. The overall process of the dust removal system is controlled. The screen displays the temperature of each pipeline.

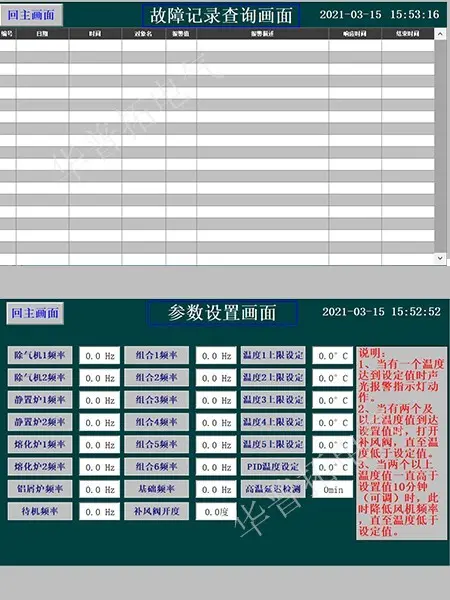

The parameter setting screen has the frequency value of each furnace, the upper and lower temperature limits, and the fault record query screen. The parameters of each fault are recorded for troubleshooting. The touch screen and PLC are programmed separately, and the touch screen achieves the control purpose through the internal contacts of the PLC . Huaputuo is a professional PLC control cabinet manufacturer. Engineers are proficient in using various programming software and can customize the programming screen according to the actual needs of users to achieve simpler control requirements.
Huaputuo Electric has 12 years of professional experience in the production of electrical control cabinets. It can provide corresponding energy-saving control solutions for various water treatment systems, exhaust gas treatment, dust removal and dust collection equipment fans. Huaputuo integrates design, production, debugging and programming. It is committed to various electrical solutions in the process of industrial automation control.
Company Strength
Innovative design capabilities
Gather more than 10 experienced technical engineers with the ability of power distribution and automatic control design and software programming development;
The two powerful forces joined forces to create Chen Yixin, which uses high intelligence to make the product structure and wiring more scientific, and the wiring inside the cabinet is reasonable and beautiful, showing the beauty of craftsmanship.
Production customization capabilities
With more than 10 years of experience in the production of low-voltage electrical equipment, we can customize exclusive automation control solutions according to customer needs;
We strictly implement the ISO9001 quality management system, all products have passed 3C certification, and the production progress nodes are tracked in time to ensure on-time delivery.
Quality and price guarantee system
Huapujie Electric has long-term cooperation with Siemens, Schneider, ABB, Rockwell and other brand component manufacturers, with genuine and high-quality configuration;
High-quality raw materials are purchased centrally, with lower costs, stable performance, and complete functions, and can be combined according to the actual control scale.
Technical collaboration support
Original technical support, collaborative product upgrade and optimization, establishment of a 7*24-hour rapid response mechanism, and full-time project engineers to guide operations at any time;
The project will be followed up by a dedicated project engineer from the early stage to the later stage to avoid information errors and the time required to familiarize yourself with the project again.
