Product Introduction
The Rittal cabinet in the pharmacy room is a cabinet in the monoclonal antibody system dispensing project of Ruiyang Pharmaceutical. Due to the particularity of the pharmaceutical industry, all cabinets in this project are made of SS304 stainless steel, IP55 protection level, and Rittal structure cabinet type. The cabinet size is W1000xH2000xD600mm.

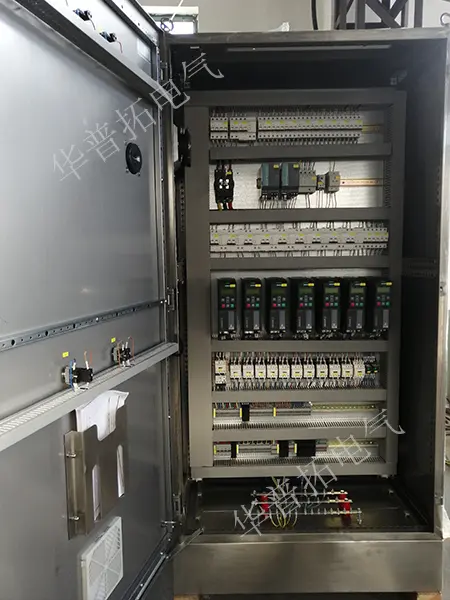

As shown in the figure on the right, the control cabinet door is equipped with indicator lights, buttons, emergency stop buttons and an operating rotary panel for the extended handle of the molded case circuit breaker. The operating panel can be used to switch the circuit breaker without opening the cabinet door, which is convenient and easy to use.

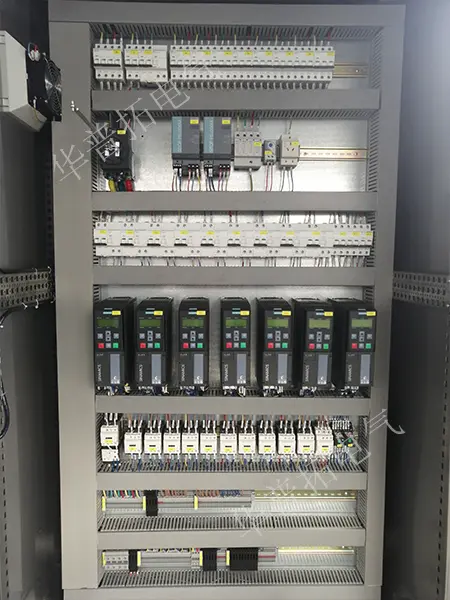

The control cabinet is equipped with Schneider circuit breakers and molded case circuit breakers with extended handles, Siemens DC power modules, Chint surge protectors, 7 G120X series 7.5KW Siemens inverters 6SL3220-2YE24-0UF0 , Schneider contactors, terminals and other components . The layout is reasonable and beautiful.
Siemens imported fan pump dedicated inverter Sinamics G120X. In addition to supporting 380V voltage, it can also be applied to 690V and 220V voltage levels; support high protection standard 3C3 coating; IP20 protection level. Built-in dual DC reactor and active protection function, software and hardware combination, reduce fault downtime. Easily cope with the on-site environment and meet various control needs of users.
The pharmaceutical room imitation Rittal cabinet produced by Huaputuo is trusted by users for its high performance and stability.
The shelf life of the electric control cabinet is 12 months .
Huaputuo provides 7*24 hours online technical consulting services.
Professional automation electrical cabinet design manufacturer, free technical solutions.
