Gui'an High end Park Huawei Cloud Data Center - Diesel Fuel Supply System Electric Control Cabinet Debugging Site

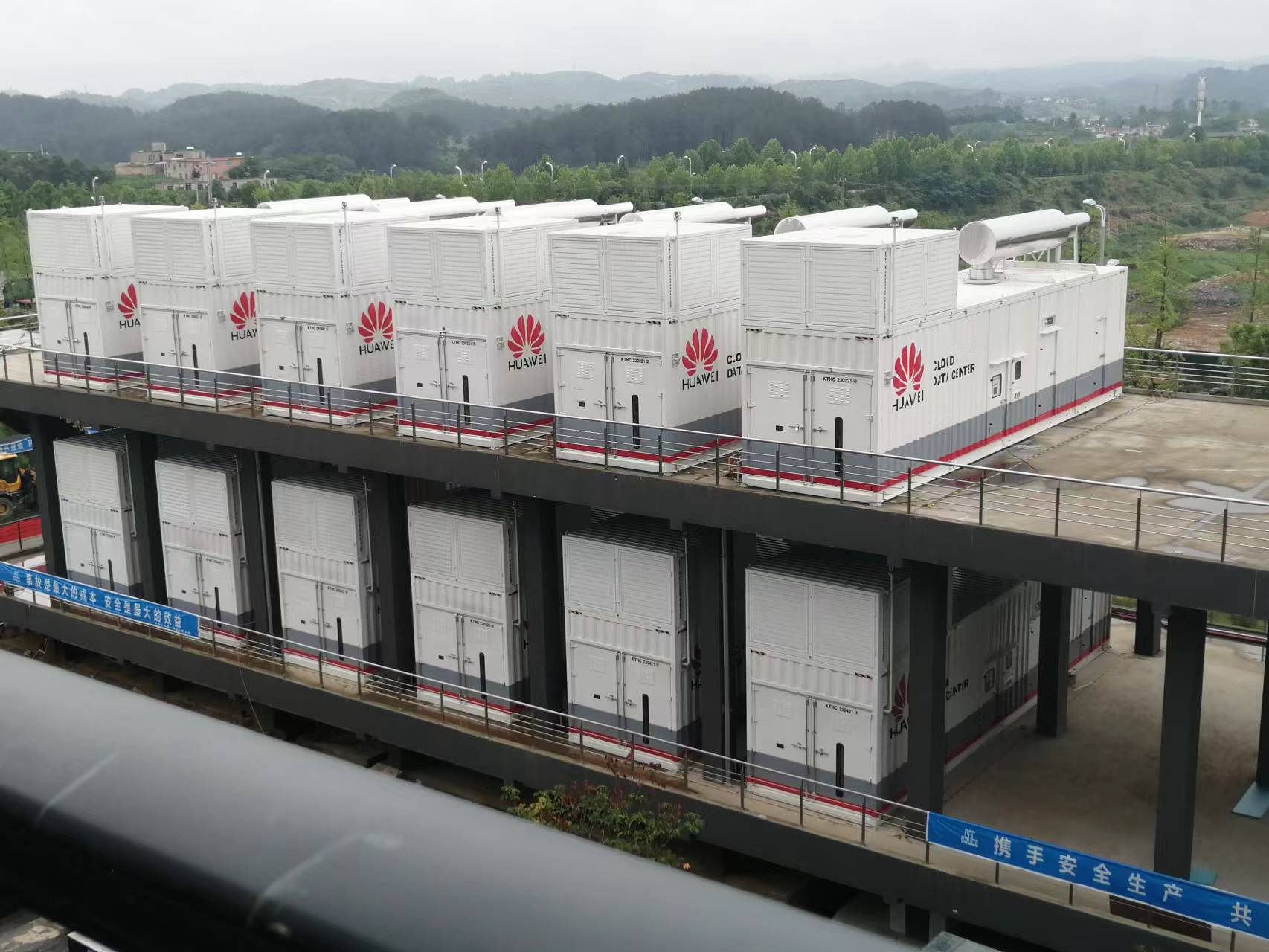

The Gui'an High end Park Huawei Cloud Data Center project is located next to Jinma Avenue in Gui'an New District, Guizhou Province, with a total construction area of approximately 480000 square meters. It consists of 51 individual buildings and corresponding supporting facilities, and can accommodate a data center of 1 million servers. It is the world's largest cloud data center for Huawei and an important carrier node for Huawei's cloud business The Huawei Cloud Gui'an Data Center built by Huawei Cloud in Gui'an New Area, Guizhou not only has the function of a western computing hub, but also serves as a business data center node for undertaking data backend processing in developed eastern cities, providing strong support for Guizhou's participation in the "East Data West Computing" project construction.

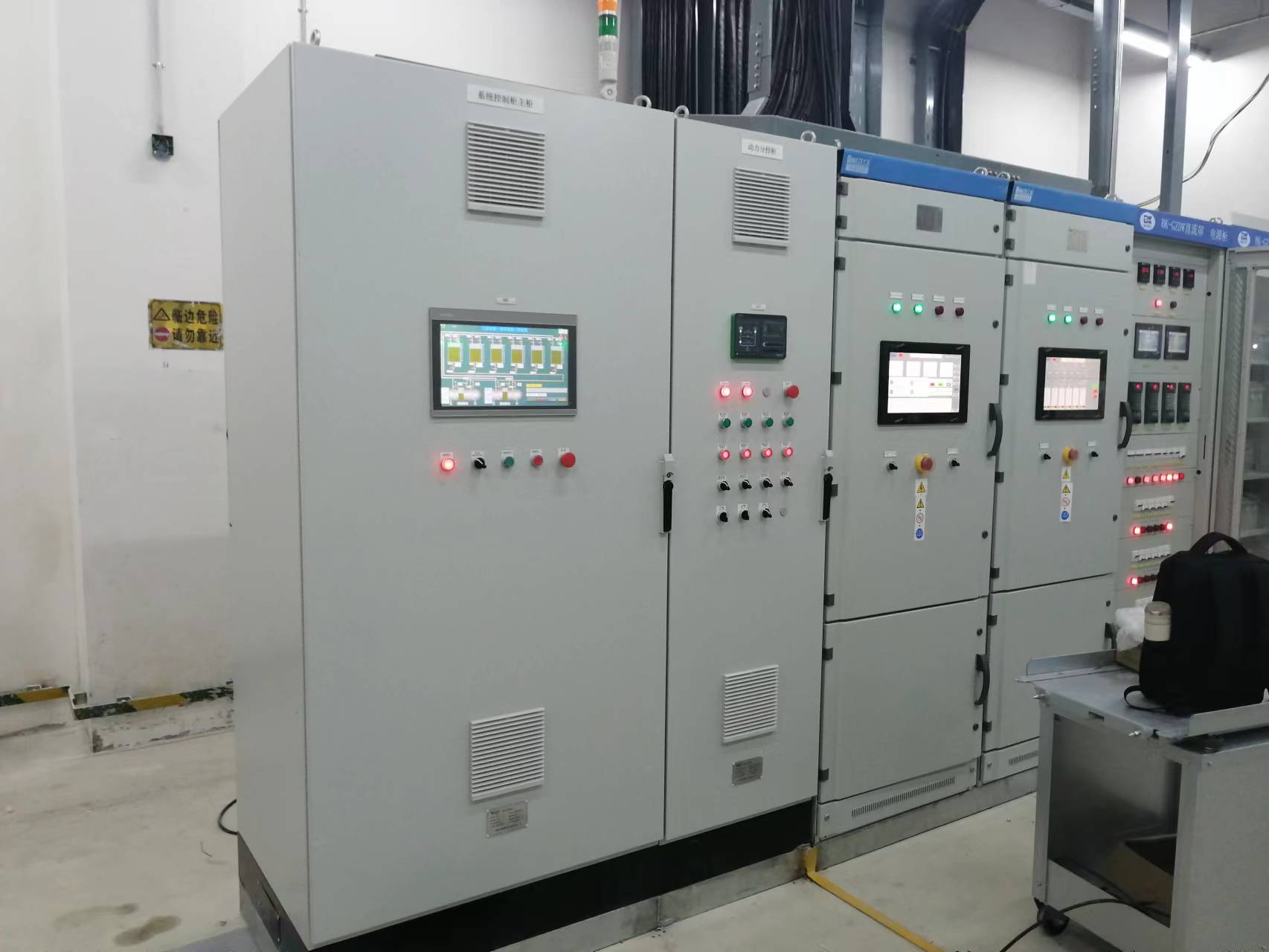

The Huawei Cloud Data Center in Gui'an High end Park has completed the debugging of the diesel fuel supply system control cabinet on August 2, 2023. The oil supply system control cabinet of this project includes a PLC main control cabinet, oil supply system sub cabinets, and local instrument boxes on site. Used to control the start-up and operation of the entire diesel fuel supply system.

The left picture is a real-life programming shot of the on-site electrical cabinet screen.

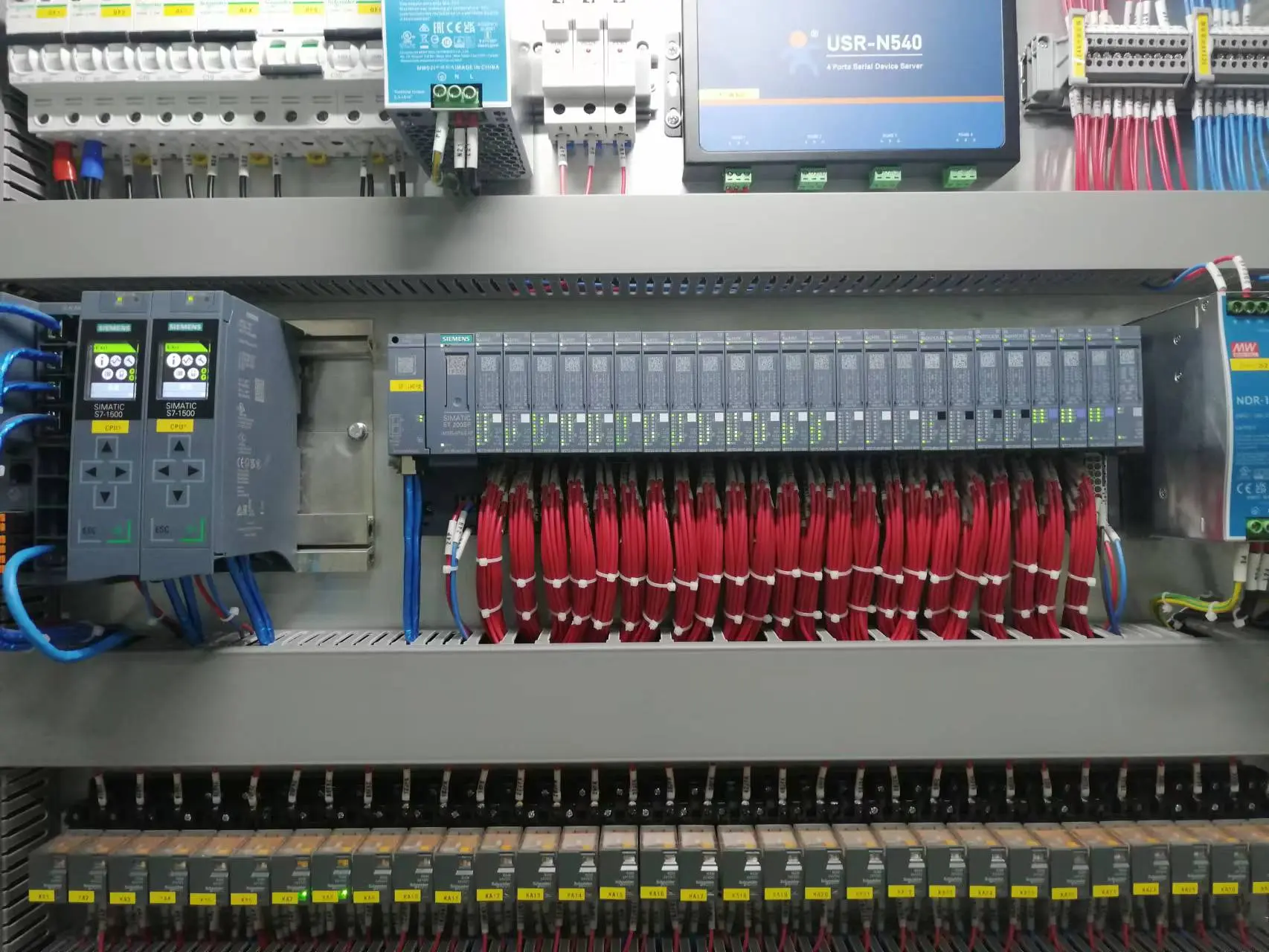

● The automatic control cabinet of the diesel generator adopts Siemens 1500 redundant CPU+PLC program module. Stable and reliable.

● There is a serial port server that can be remotely viewed, controlled, maintained conveniently, and has stable performance.

● Non standard customization, more in line with user needs.

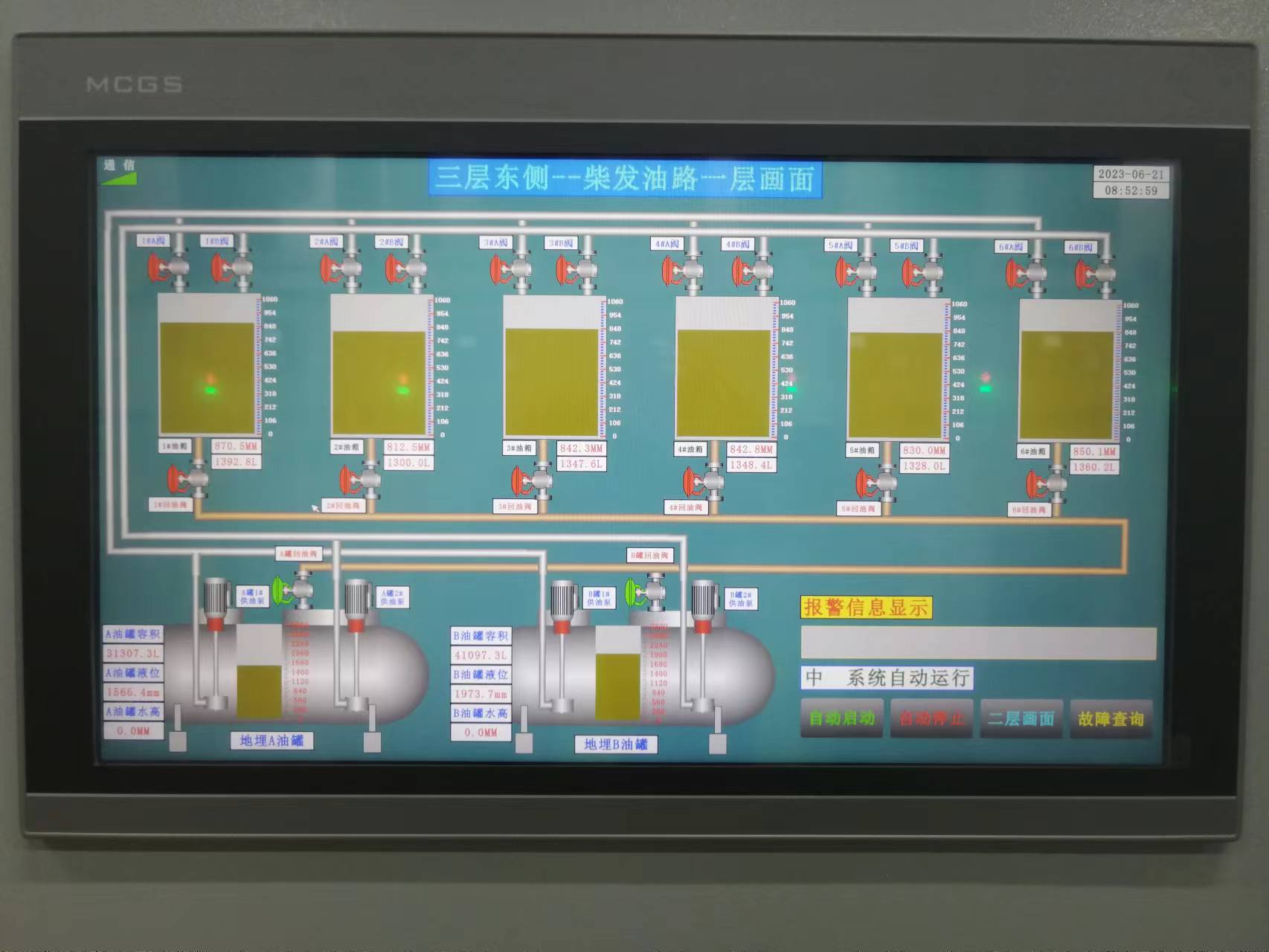

● Touch screen display allows for intuitive observation of the oil tank's storage status.

● It can provide a global overview of the entire oil supply system and switch to different states on different screens to monitor the oil level in the oil supply tank. If the oil level is below the set level or there is an oil leakage situation, an emergency alarm signal will be issued.

Intelligent control equipment operation. Improve efficiency and reduce losses!
