Product Introduction

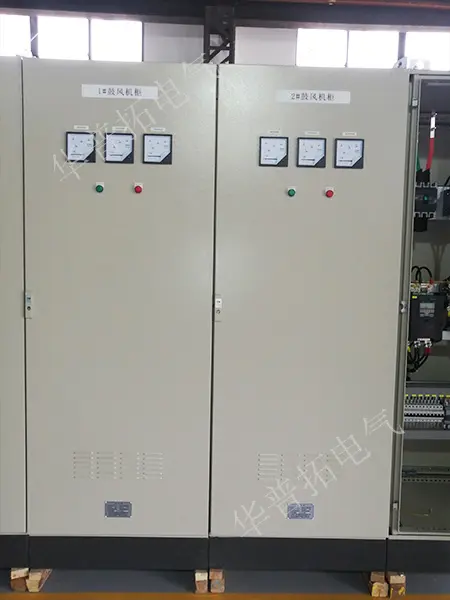

The blower outlet cabinet is a starter cabinet designed and produced by Kunshan Huapujie Electric. There are two outlet cabinets, namely 1# blower cabinet and 2# blower cabinet. It is used to control oxygen concentrator equipment. It imitates the Rittal cabinet type, with a single front door. The upper part of the cabinet door is equipped with an ammeter/voltage meter and an indicator light .

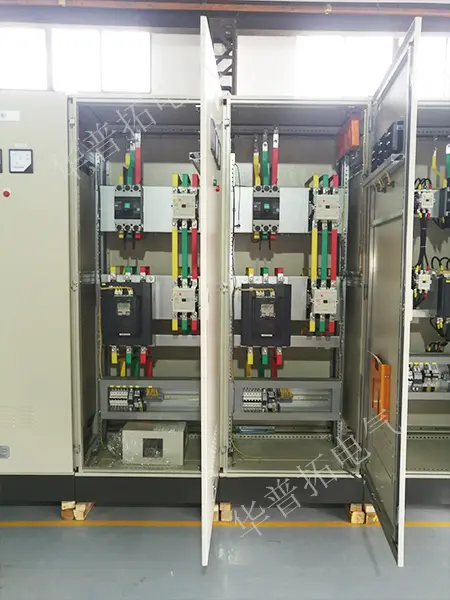

As shown in the figure, the cabinet is installed with Xichi 132KW soft starter, Changshu molded case circuit breaker, Changshu contactor CK3-400, thermal relay and other components.
The 132KW blower cabinet is connected by yellow, green, and red three wire copper bars from the plastic shell to the soft starter and contactor, and is led out by wires from the soft starter. Each component is labeled with a corresponding tag number above it, making it easy to locate the corresponding circuit on site. Reserve the position for connecting the busbar above and equip it with busbar clamps. Convenient on-site cabinet installation.
This project consists of 6 low-voltage cabinets and 1 PLC control cabinet, which together form the electrical control cabinet system for the oxygen concentrator equipment. Huapu Tuo Electric has 12 years of professional experience in the production of electrical control cabinets. Corresponding energy-saving control schemes can be provided for various mechanical equipment control, water treatment systems, exhaust gas treatment, dust removal and collection equipment fans.
Company Strength
Innovative design capabilities
Gather more than 10 experienced technical engineers with the ability of power distribution and automatic control design and software programming development;
The two powerful forces joined forces to create Chen Yixin, which uses high intelligence to make the product structure and wiring more scientific, and the wiring inside the cabinet is reasonable and beautiful, showing the beauty of craftsmanship.
Production customization capabilities
With more than 10 years of experience in the production of low-voltage electrical equipment, we can customize exclusive automation control solutions according to customer needs;
We strictly implement the ISO9001 quality management system, all products have passed 3C certification, and the production progress nodes are tracked in time to ensure on-time delivery.
Quality and price guarantee system
Huapujie Electric has long-term cooperation with Siemens, Schneider, ABB, Rockwell and other brand component manufacturers, with genuine and high-quality configuration;
High-quality raw materials are purchased centrally, with lower costs, stable performance, and complete functions, and can be combined according to the actual control scale.
Technical collaboration support
Original technical support, collaborative product upgrade and optimization, establishment of a 7*24-hour rapid response mechanism, and full-time project engineers to guide operations at any time;
The project will be followed up by a dedicated project engineer from the early stage to the later stage to avoid information errors and the time required to familiarize yourself with the project again.
